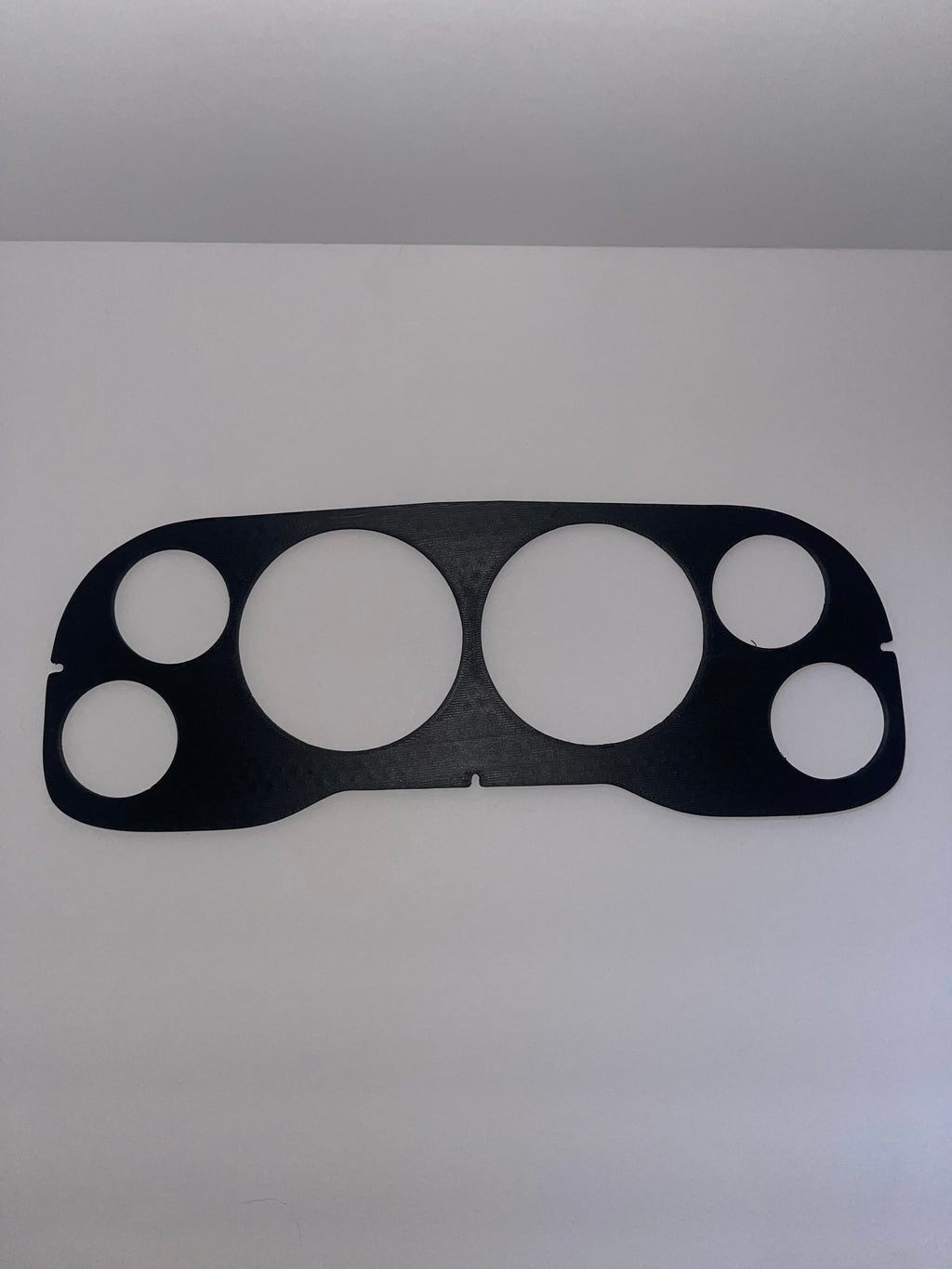

94-02 Dodge DIY Dash Cluster

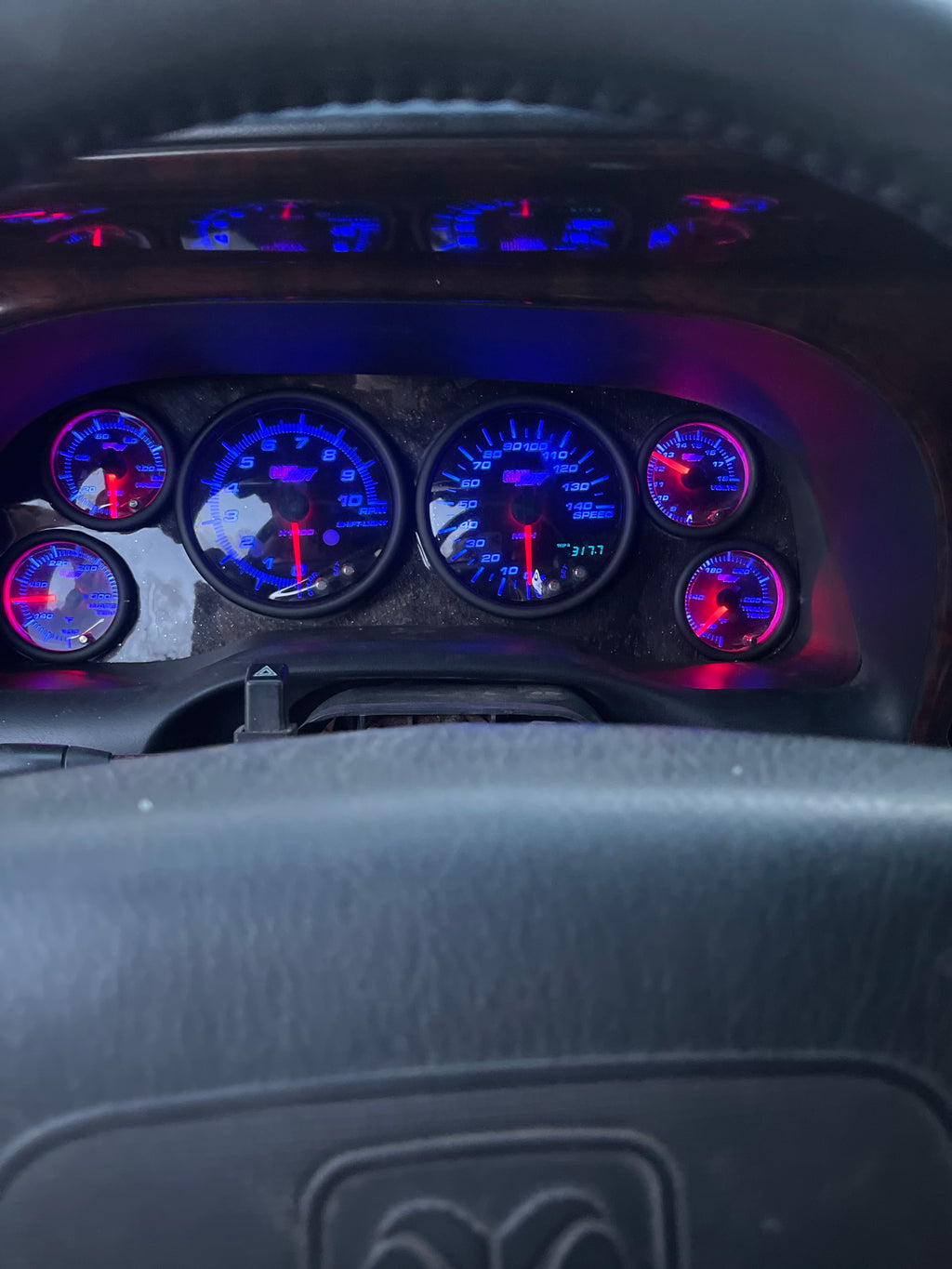

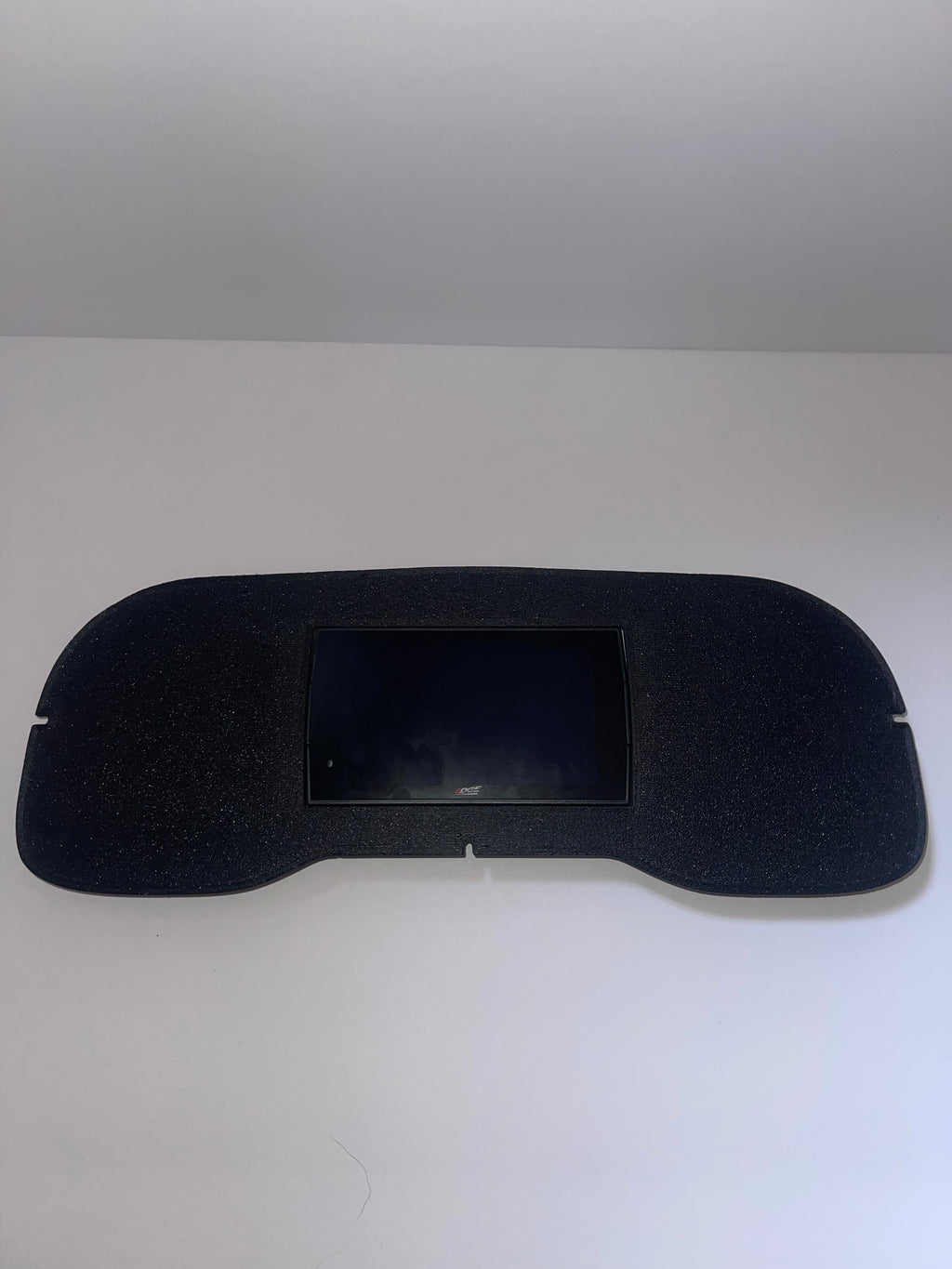

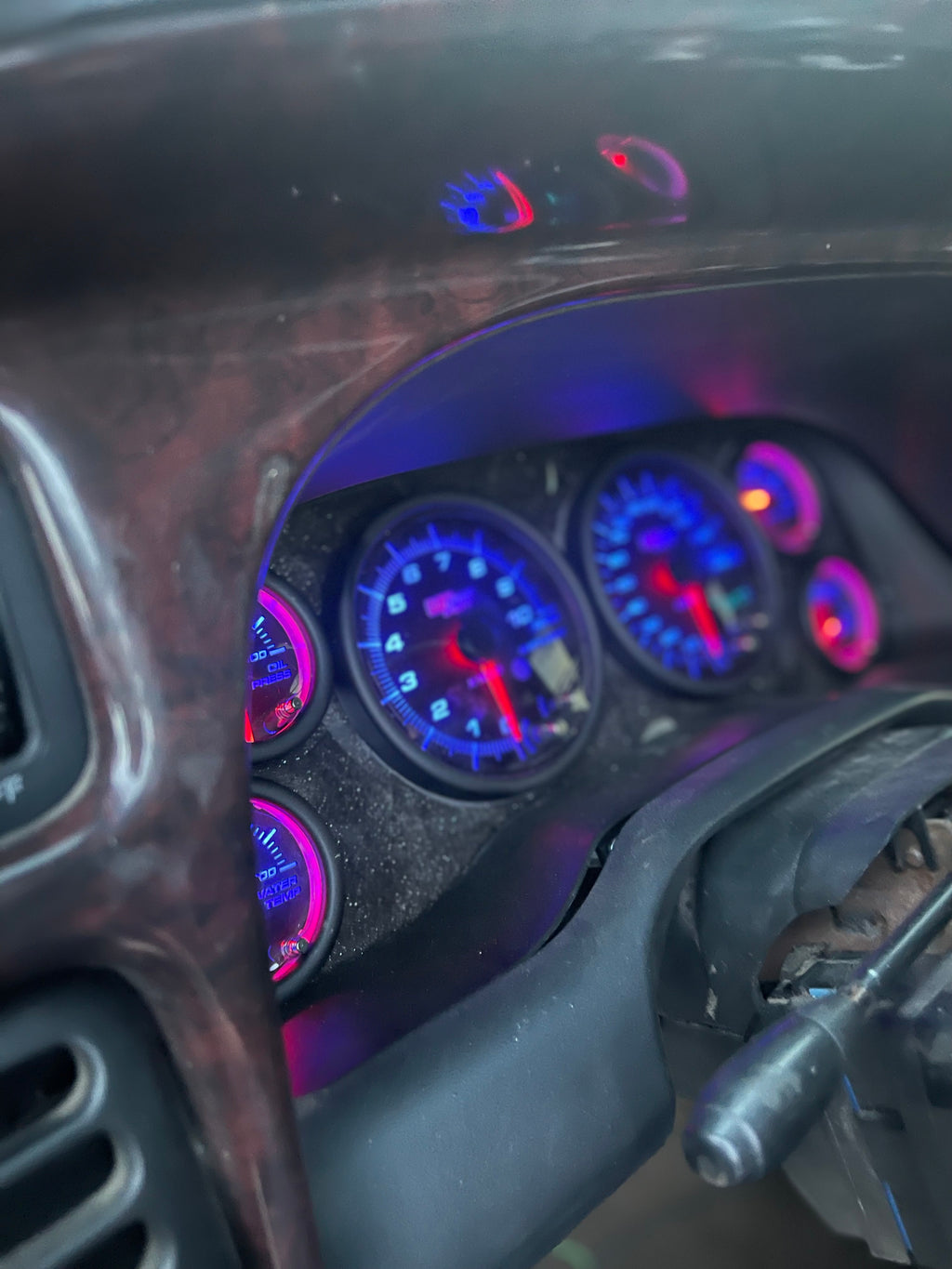

The solution to your gauge needs. This product is ideal for P-Pump 24V or common rail swaps utilizing a manual or FMVB transmission. With any of the above swaps and you are wanting to get rid of the factory 2nd gen computer that is getting harder to come by, you still need gauges. With this you have selection of all mechanical (Two 3-3/4" gauges, with four 2-1/16" gauges), Edge CTS3 with GPS speedometer (One 3-3/4" Gauge, one Edge monitor), or the option of  Edge monitor only.

To utilize an Edge monitor on a mechanical truck you will need a 12 volt power adapter.

NOTE: GAUGES OR MONITOR NOT INCLUDED!

PRODUCT IS FULLY SANDABLE AND PAINTABLE.

To use this dash it is required to remove the factory cluster and modify it. You will need to remove the factory black trim ring and disassemble the cluster. Cut the back out of the factory housing. Install gauges into new gauge face. Install gauge face onto the housing and reinstall the factory trim ring. Some sanding or trimming of new gauge face might be necessary as clusters fit different from truck to truck.
